90° Male stud NPT XWE-NPT - NPT / 90° / 24°

XWE-NPT - NPT / 90° / 24°

Execution: elbow union NPT taper thread / 24° cone.

Fitting material/coating: standard Cr(VI) free passivated steel, stainless steel on request.

Delivered without nut/cutting ring.

Customers who bought this product also viewed:

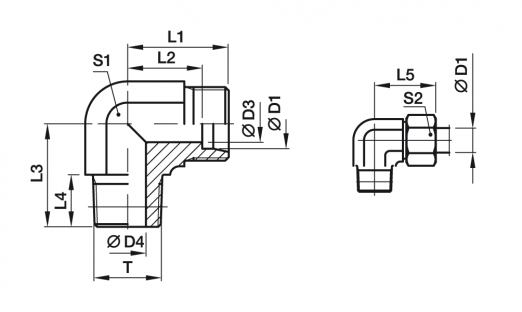

Ordercode Productcode Serie PN/bar Ø D1 Ø D3 T L1 L2 L3 L4 S1 Price Amount
11446 XWE04LL18NPT LL 100 04 M6X1 1/8" 15 11 17 - 9 € 11.12
11433 XWE06LL18NPT LL 100 06 M10X1 1/8" 15 9.5 17 - 9 € 11.26
11453 XWE08LL18NPT LL 100 08 M12X1 1/8" 17 11.5 20 - 12 € 12.66
21143 XWE06L18NPT L 315 06 M12X1.5 1/8" 19 12 20 8 12 € 8.44
15835 XWE06L14NPT L 315 06 M12X1.5 1/4" 21 14 26 12 12 € 12.14
25295 XWE08L18NPT L 315 08 M14X1.5 1/8" 21 14 26 8 12 € 15.51
11342 XWE08L14NPT L 315 08 M14X1.5 1/4" 21 14 26 12 12 € 8.86
25297 XWE08L12NPT L 315 08 M14X1.5 1/2" 24 17 28 12 17 € 28.44
25296 XWE08L38NPT L 315 08 M14X1.5 3/8" 26 19 34 14 19 € 16.60
25299 XWE10L18NPT L 315 10 M16X1.5 1/8" 22 15 22 8 14 € 18.26
22801 XWE10L14NPT L 315 10 M16X1.5 1/4" 22 15 27 12 14 € 9.69
25300 XWE10L38NPT L 315 10 M16X1.5 3/8" 24 17 28 12 17 € 17.61
25301 XWE10L12NPT L 315 10 M16X1.5 1/2" 28 21 34 14 19 € 28.44
24612 XWE12L14NPT L 315 12 M18X1.5 1/4" 24 17 28 12 17 € 14.01
25303 XWE12L38NPT L 315 12 M18X1.5 3/8" 24 17 28 12 17 € 12.52
24492 XWE12L12NPT L 315 12 M18X1.5 1/2" 28 21 34 14 19 € 22.61
25307 XWE15L38NPT L 315 15 M22X1.5 3/8" 28 21 34 12 19 € 22.61
25308 XWE15L12NPT L 315 15 M22X1.5 1/2" 28 21 34 14 19 € 15.53
25311 XWE18L12NPT L 315 18 M26X1.5 1/2" 231 23.5 36 14 24 € 18.11
25312 XWE18L34NPT L 315 18 M26X1.5 3/4" 34 26.5 42 16 27 € 46.23
25315 XWE22L34NPT L 160 22 M30X1.5 3/4" 35 27.5 42 16 27 € 25.40
25318 XWE28L1NPT L 160 28 M36X2 1" 38 30.5 48 18 36 € 38.07
25321 XWE35L114NPT L 160 35 M45X2 1.1/4" 45 34.5 54 20 41 € 75.27
25323 XWE42L112NPT L 160 42 M52X2 1.1/2" 51 40 61 22 50 € 118.05
25294 XWE06S14NPT S 630 06 M14X1.5 1/4" 23 16 26 12 12 € 9.73
25298 XWE08S14NPT S 630 08 M16X1.5 1/4" 24 17 27 12 14 € 10.84
25302 XWE10S38NPT S 630 10 M18X1.5 3/8" 25 17.5 28 12 17 € 12.71
25304 XWE12S38NPT S 630 12 M20X1.5 3/8" 29 21.5 28 12 17 € 13.49
17229 XWE12S12NPT S 630 12 M20X1.5 1/2" 30 22.5 32 14 19 € 22.61
25305 XWE14S38NPT S 630 14 M22X1.5 3/8" 30 22 30 12 19 € 25.84
25306 XWE14S12NPT S 630 14 M22X1.5 1/2" 30 22 32 14 19 € 25.84
25309 XWE16S38NPT S 400 16 M24X1.5 3/8" 33 24.5 32 12 24 € 33.26
25310 XWE16S12NPT S 400 16 M24X1.5 1/2" 33 24.5 32 14 24 € 20.12
25313 XWE20S12NPT S 400 20 M30X2 1/2" 37 26.5 36 14 27 € 46.23
25314 XWE20S34NPT S 400 20 M30X2 3/4" 37 26.5 42 16 27 € 25.40
25316 XWE25S34NPT S 400 25 M36X2 3/4" 42 30 42 16 36 € 52.57
25317 XWE25S1NPT S 400 25 M36X2 1" 42 30 48 18 36 € 38.50
25319 XWE30S1NPT S 400 30 M42X2 1" 49 35.5 48 18 41 € 80.85
25320 XWE30S114NPT S 400 30 M42X2 1.1/4" 49 35.5 54 20 41 € 75.68
25322 XWE38S112NPT S 315 38 M52X2 1.1/2" 57 41 61 22 50 € 118.88
