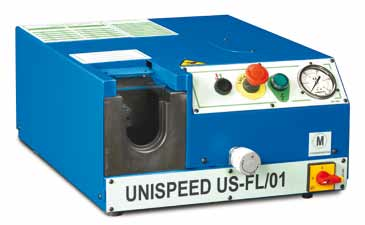

UNISPEED USFL/01

UNISPEED USFL/01

This device allows pre-assembling DIN2353 rings through manual adjustment of the pressure, which is to be set before each operation.
A 37° flaring of 6 to 42 mm diameter and 4 mm maximum thickness rigid stainless steel (AISI 316 TI) and carbon steel (ST 37.4) tubes may be obtained due to the addition of a special block made of steel.
Also available in the 12V version, this is the perfect device for outdoor assistance.

Technical Features

PRE-ASSEMBLING	6 > 42x4 mm (0.236">1.654"x0.158")
37° FLARING	6X4 > 42x4 mm (0.236"x0.158">1.654"x0.158")
MATERIALS	AISI 316 TI - ST 37.4
WEIGHT	58 KG (130 lbs)
DIMENSIONS L x W x H	430x600x270 mm (16.929"x23.622"x10.630")
STANDARD VOLTAGE	400V 50HZ 3PH
MOTOR POWER	0.75 Kw (1 Hp)
OIL	incl.
TOOL HOLDER	OPTIONAL
37° FLARING BLOCK	OPTIONAL
12V VOLTAGE	OPTIONAL
SPECIAL VOLTAGE	OPTIONAL

Request a Quotation
