Suction hose hydraulics SAE 100-R4

SAE 100-R4

Inner tube: synthetic rubber

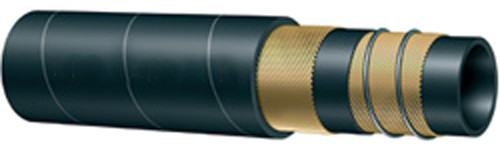

Reinforcement : 2 textile braids and 1 steel wire helix.
Cover : oil, abrasion, ozon and weather resistant synthetic rubber.
Working temperature medium : -40°C / +100°C
Norm: SAE 100-R4




Ordercode Productcode inch DN mm dash mm max. bar min. bar min. mm mtr. Price Amount
6310 R419 3/4" 19 12 32,0 21 84 150,0 0,740 € 40.13
25598 R422 7/8" 22 22 32 10 30 70 0,61 *
6311 R425 1" 25 16 38,0 18 70 200,0 0,870 € 42.29
6312 R431 1.1/4" 31 20 45,0 14 56 256,0 1,040 € 54.00
6313 R438 1.1/2" 38 24 52,0 10 42 304,0 1,270 € 60.78
6314 R451 2" 51 32 64,0 7 28 400,0 1,620 € 73.96
28691 R463 2.1/2" 63 40 77,0 5 17 508,0 2,120 € 94.54
6316 R476 3" 76 48 90,0 4 15 608,0 2,510 € 118.35

The prices with a * are on request
